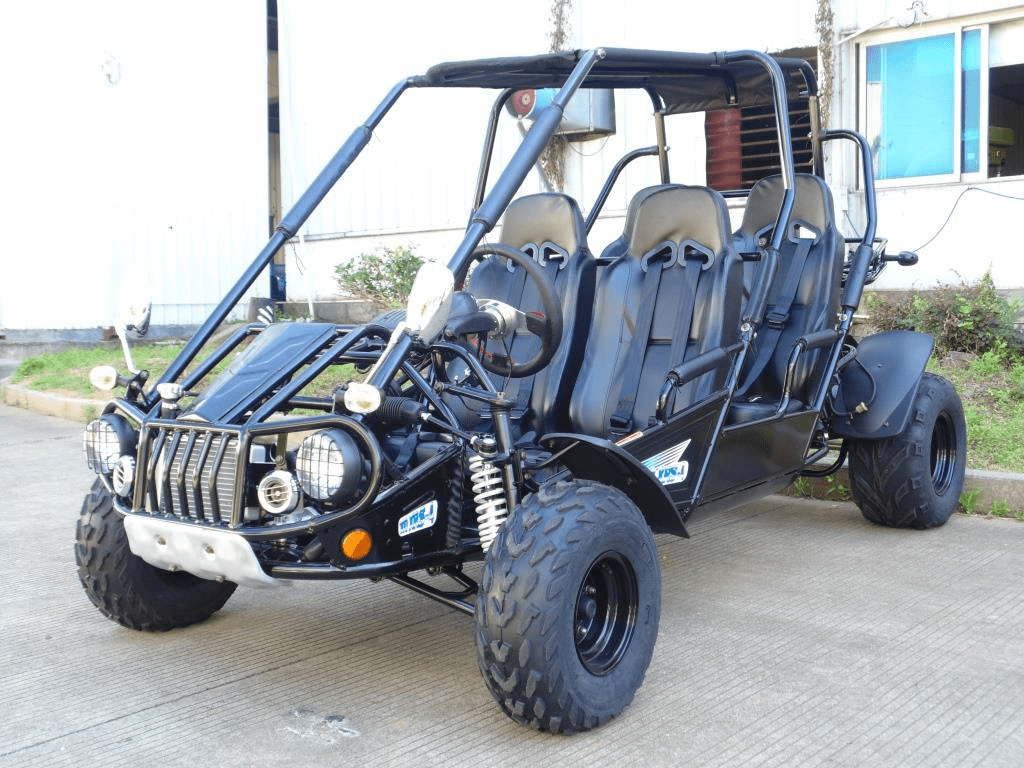

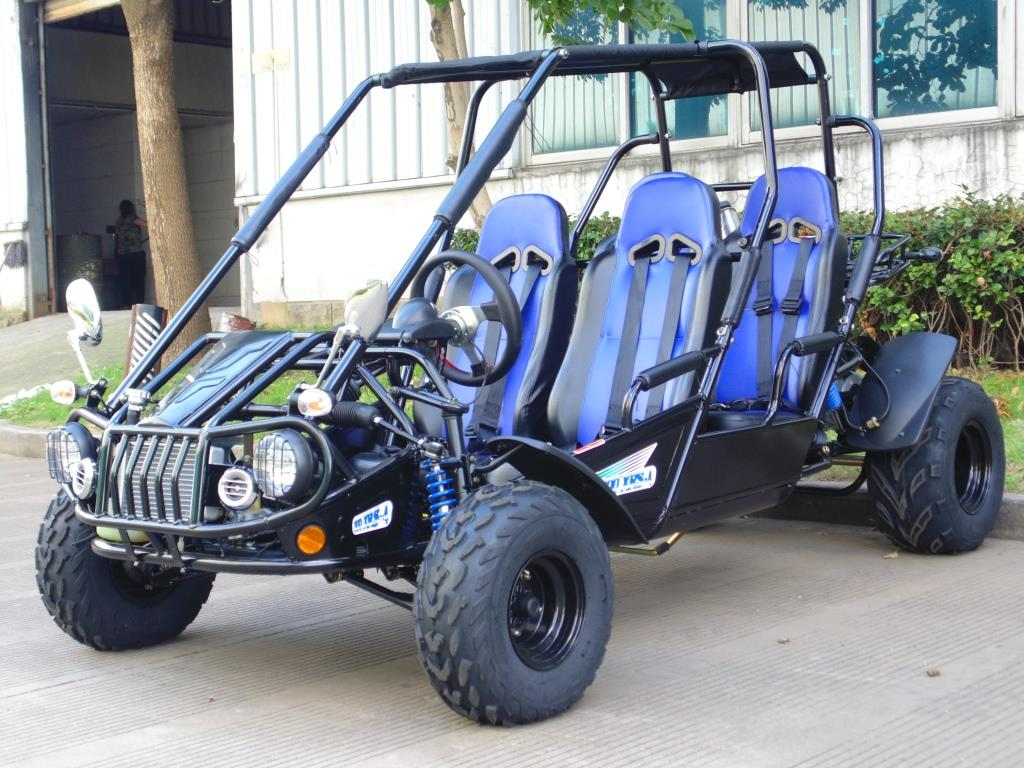

2025 Trailmaster XRS4300E

Trailer

Call for Price

Request Info

View Inventory

Specs and Features

Specifications
Highlighted Features

Engine Information

Engine type

4-stroke, single cylinder, air cooled

Displacement

300cc

Output Max.

17.4HP/6500rpm

Max torque

16 lb ft/5000rpm

Bore x stroke

2.85 x 2.63 inches

Max speed

50mph

Climbing ability

15 degrees

Min turning radius

229 inches

Ignition

ECU

Starting system

Electric Start

Battery

12V 10Ah

Gear oil

MoS2&W-2WD-4D

General Information

Clutch

Automatic CTV with reverse

Driveline / Driving wheel

Chain / Dual wheel drive

Suspension, F / R

Dual A-arm / swing-arm

Brakes, F

Hydraulic brakes, Disc

Brakes, R

Hydraulic brakes, Disc

Tires, F / R

20 x 7-8 / 22 x 10-10

Fuel capacity

2.25 gal

N.W.

608lbs

G.W.

758 lbs

Max load

800 lbs

Dimension Information

Wheelbase

84.5 inches (2.23m)

OA L x W x H

116.1x54.5x59.2 inches

Height to seat,F

17 inches

Height to seat，R

18.2 inches

Distance between front and rear seat

25.6 inches

Pedal to center seat back

41 to 46 inches
