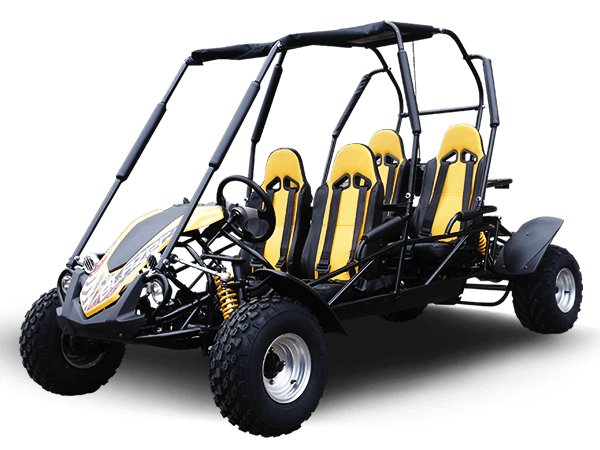

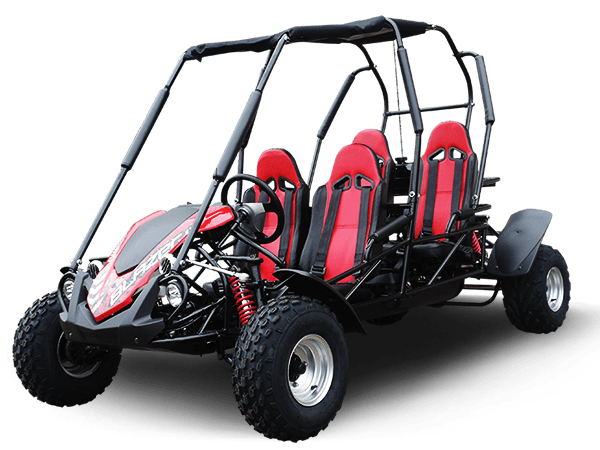

2025 Trailmaster Blazer4200

Trailer

Call for Price

Request Info

View Inventory

Specs and Features

Specifications
Highlighted Features

Engine Information

EPA certificated

Engine type

4-stroke, single cylinder, air cooled

Displacement

168.9cc

Max HP

11.1hp/8000rpm

Max torque

8.1 lb ft/6000rpm

Bore x stroke

2.4x2.28 inches

Climbing ability

18 degrees

Min. turning radius

229 inches

Ignition

C.D.I

Starting system

Electric

Battery

12V 10Ah

Engine oil

SAE 15W/40

General Information

Clutch

Automatic CVT with reverse

Driveline / Driving wheel

Chain / Dual wheel drive

Suspension, F / R

Dual A-arm / swing-arm

Brakes, F / R

Both hydraulic brakes, Disc

Tires, F / R

19 x 7-8 / 18 x 9.5-7

Fuel capacity

2.25 gal

Weight, G.W. / N.W.

650 lbs/ 500 lbs

Max load

661 lbs

Dimension Information

Wheelbase

88 inches

OA L x W x H

112x54x59 inches

Height to seat, F/R

29 inches/ 32 inches

Distance from F to R seat

28 inches

Min ground clearance

9.87 inches

Pedal to seat back distance

34-39 inches
