2025 KTM 1390 Super Duke R

Orange
Black
Call for Price
Request Info
View Inventory
Back to Showroom

Specs and Features

ENGINE
Primary drive
40:76
Torque
145 Nm
Transmission
6-speed
Battery capacity
11.2 Ah
Cooling
Liquid cooled with water/oil heat exchanger
Secondary gear ratio
17:38
Power in KW
140 kW
Starter
Electric starter
Stroke
71 mm
Bore
110 mm
Clutch
PASC slipper clutch, hydraulically operated
CO2 emissions
139 g/km
Compression ratio
13.2
Displacement
1350 cm³
EMS
Keihin EMS with RBW and cruise control, double ignition
Design
2-cylinder, 4-stroke, V 75°
Fuel consumption
5.9 l/100 km
Fuel-mixture generation
Keihin EFI (throttle body 60 mm)
Lubrication
Forced oil lubrication with 3 oil pumps
Power in hp
188 hp
CHASSIS
Weight (without fuel)
200.5 kg
Tank capacity (approx.)
17.5 l
Wheelbase
1491 mm
Front brake disc diameter
320 mm
Rear brake disc diameter
240 mm
Front brake
2 x Brembo Stylema Monobloc four piston, radially mounted caliper
Rear brake
Brembo twin-piston fixed calliper, brake disc
Chain
525 X-Ring
Frame design
Chromium-Molybdenum-Steel trellis frame, powder coated
Front suspension
WP APEX-USD Ø 48 mm
Ground clearance
149 mm
Handlebar
Tapered aluminum Ø 28/22 mm
Rear suspension
WP APEX-linkage shock
Seat height
834 mm
Silencer
Stainless steel primary and secondary silencer with two catalytic converters
Steering head angle
65.3 °
Rear subframe design
Cast aluminium / Composite
Suspension travel (front)
125 mm
Suspension travel (rear)
140 mm
Tyre dimensions (front/rear)
120/70; 200/55
Wheels
3.50 x 17"; 6 x 17"
Wheels
Cast aluminium wheels
Wheelbase
1491 ± 15 mm

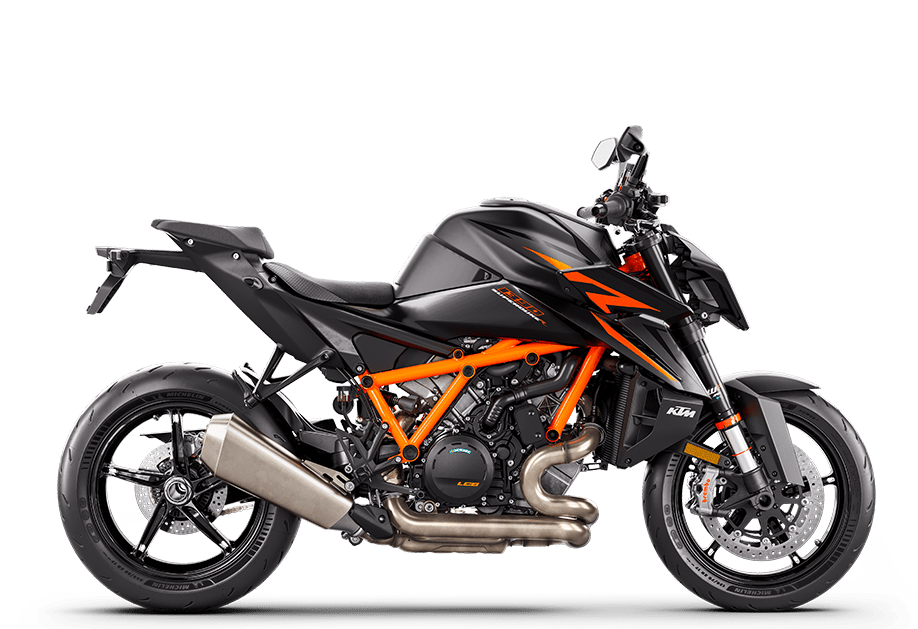

2025 KTM 1390 Super Duke R

They say it's lonely at the top. But that's only because you've eaten your way to the sharp end of the pyramid. The KTM 1390 SUPER DUKE R takes its place as the undisputed Alpha of the NAKED pack, making its dominance felt with every brazen blip of its throttle. This motorcycle is designed, developed and produced in Austria.
