2025 KTM 890 Adventure R

Specs and Features

ENGINE
Primary drive
39:75
Torque
100 Nm
Transmission
6-speed
Cooling
Liquid cooled with water/oil heat exchanger
Secondary gear ratio
45:16
Power in KW
77 kW
Starter
Electric starter
Stroke
68.8 mm
Bore
90.7 mm
Clutch
Cable operated PASC slipper clutch
CO2 emissions
103 g/km
Compression ratio
13.5
Displacement
889 cm³
EMS
Bosch EMS with RBW
Design
2-cylinder, 4-stroke, parallel twin
Fuel consumption
4.4 l/100 km
Fuel-mixture generation
DKK Dellorto (Throttle body 46mm)
Lubrication
Forced oil lubrication with 2 oil pumps
Power in hp
103 hp
CHASSIS
Weight (without fuel)
200 kg
Tank capacity (approx.)
20 l
Wheelbase
1.528 mm
Front brake disc diameter
320 mm
Rear brake disc diameter
260 mm
Front brake
2x radially mounted 4 piston caliper
Rear brake
2 piston floating caliper
Chain
520 X-Ring
dry weight
196 kg
Frame design
Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front suspension
WP XPLOR-USD, Ƙ 48 mm
Ground clearance
263 mm
Handlebar
Aluminium, tapered Ƙ 28/22 mm
Rear suspension
WP XPLOR-Monoshock
Seat height
880 mm
Silencer
Stainless steel primary and secondary silencer
Steering head angle
63.7 °
Rear subframe design
Chromium-Molybdenum-Steel trellis, powder coated
Suspension travel (front)
240 mm
Suspension travel (rear)
240 mm
Tyre dimensions (front/rear)
90/90; 150/70
Wheels
2.50 x 21"; 4.50 x 18"
Wheels
Spoked wheels with aluminium tubeless rims
Wheelbase
1.528 ± 15 mm

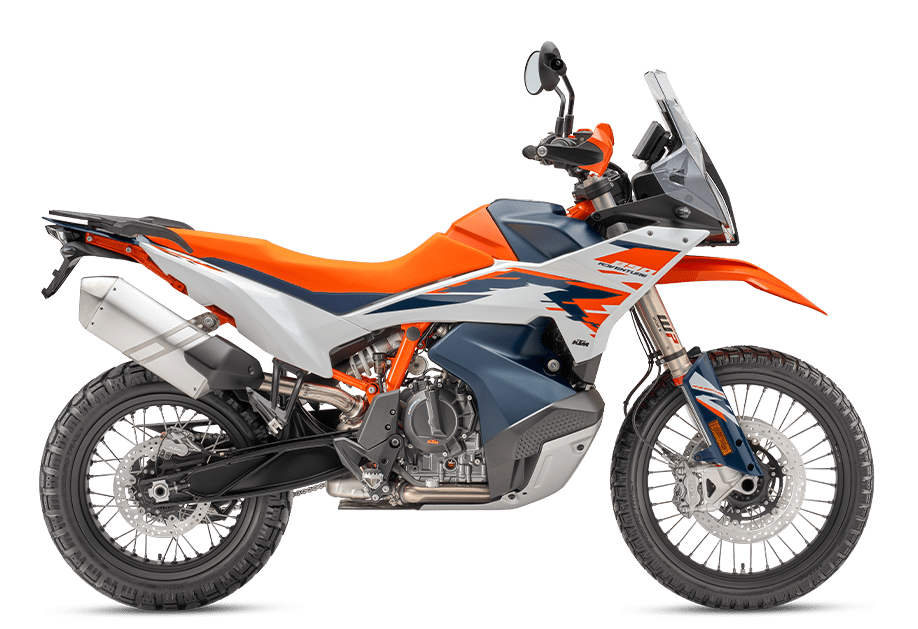

2025 KTM 890 Adventure R

The KTM 890 ADVENTURE R proves that the destination comes second. With its unmatched ability to dispatch everything from highways to rocky gravel switchbacks, to single goat tracks, the KTM 890 ADVENTURE R boasts serious travel capabilities. Thanks to its incredibly responsive powerplant, pin-sharp offroad handling, and all-day comfort, its all about the journey.
