2025 KTM 300 XC-W Factory Edition

Orange

MSRP: $13,999

Request Info

View Inventory

Back to Showroom

Specs and Features

ENGINE

Primary drive

26:72

Transmission

6-speed

Secondary gear ratio

13:45

Starter

Electric starter

Stroke

72 mm

Bore

72 mm

Clutch

Wet, DDS multi-disc clutch, Brembo hydraulics

Displacement

293.15 cm³

EMS

Vitesco Technologies EMS

Design

1-cylinder, 2-stroke engine

Fuel-mixture generation

Keihin EFI, throttle body 39 mm

CHASSIS

Wheelbase

1.489 mm

Front brake disc diameter

260 mm

Rear brake disc diameter

220 mm

Front brake

Disc brake

Rear brake

Disc brake

Chain

520 X-Ring

Frame design

Central double-cradle-type 25CrMo4 steel

Handlebar

Neken, aluminium Ø 28/22 mm

Rear suspension

WP XPLOR shock absorber with PDS

Silencer

Aluminium

Steering head angle

63.9 °

Rear subframe design

Aluminum-reinforced polyamide

Tyre dimensions (front/rear)

80/100; 110/100

Wheels

1.60 x 21"; 2.15 x 18"

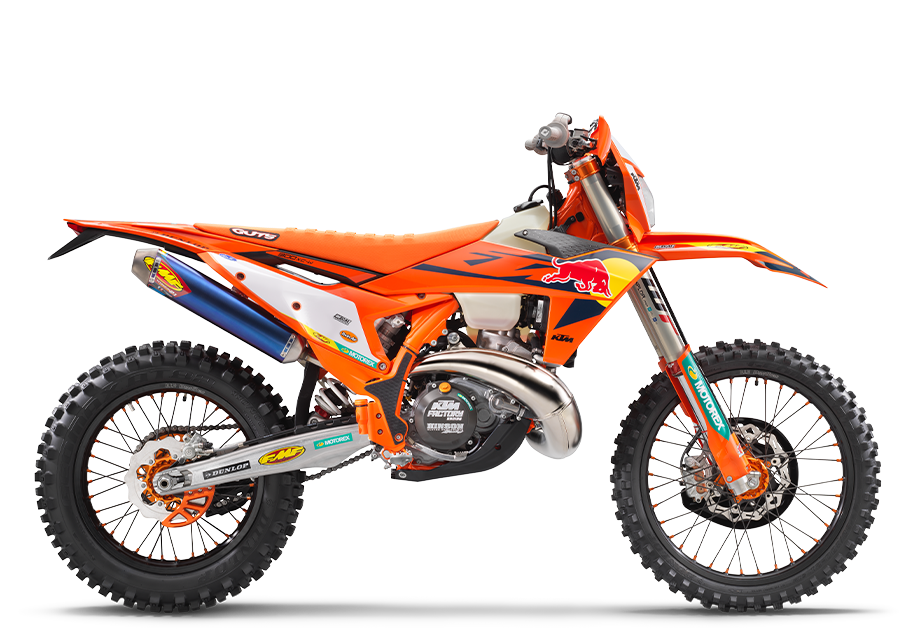

2025 KTM 300 XC-W FACTORY EDITION

The Crème de la crème of enduro mastery, the 2025 KTM 300 XC-W FACTORY EDITION moves the enduro goalposts to an entirely new stratosphere. Instantly recognizable with full Red Bull KTM Factory Racing livery, an insane mix of CNC and anodized hardware - as well as the top suspension in the business - the KTM 300 XC-W FACTORY EDITION is ready to crown its next champion.

Adjustability

Getting READY TO RACE has never been easier. The 2025 KTM 300 XC-W FACTORY EDITION takes adjustability to a new level with fully adjustable suspension setup at both ends. At the rear, our legendary, race-winning PDS technology features hand-adjustable dual compression controls, allowing riders to adjust high- and low-speed settings in a matter of seconds. On the front, the forks are also easily adjusted with both 30-clicks of compression and rebound adjustment and 10 mm of spring pre-load adjustment.

Throttle Body Injection

The 2025 KTM 2-stroke Enduro models feature electronically-controlled Throttle Body Injection - or TBI. The ECU, together with a Keihin 39 mm throttle body, calculates the ideal air-fuel mixture by constantly analyzing water temperature, air temperature, ambient pressure, and pressure within the crankcase, the rpm, and the throttle position to ensure the smoothest and most consistent power delivery in the most gnarly of enduro conditions.

Frame

Specifically engineered for longitudinal rigidity, the 2025 KTM 300 XC-W FACTORY EDITION is engineered around a gloss-orange powder-coated frame providing exceptional rider feedback, energy absorption, and high-speed stability. This is achieved by repositioning the rotating masses in the frame along with a forged steering head connection. The footrest mounts also feature a slim design for less risk of hooking up. And when the ride comes to an end, a forged one-piece side stand ensures your enduro weapon stands proud.

Seat

Swing your leg over the KTM 300 XC-W FACTORY EDITION and you're met with a diamante Factory seat, wrapped in a orange seat cover with transversely stitched ribs, and protected by a water-resistant coating, you can be assured of maximum grip at all times, with unrestricted freedom of movement when you need it.
