2025 Husqvarna Vitpilen 801

Yellow

White

Call for Price

Request Info

View Inventory

Back to Showroom

Specs and Features

ENGINE

Primary drive

39:75

Transmission

6-speed

Cooling

Liquid cooled with water/oil heat exchanger

Secondary gear ratio

16:41

Power in KW

77 kW

Starter

Electric starter

Stroke

65.7 mm

Bore

88 mm

Clutch

Cable operated PASC slipper clutch

CO2 emissions

106 g/km

Compression ratio

12.5

Displacement

799 cm³

EMS

Bosch EMS with RBW

Design

2-cylinder, 4-stroke, parallel twin

Fuel consumption

4.5 l/100 km

Fuel-mixture generation

DKK Dellorto (Throttle body 46mm)

Lubrication

Forced oil lubrication with 2 oil pumps

Chassis

Weight (without fuel)

180 kg

Tank capacity (approx.)

16 l

Wheelbase

1.475 mm

Front brake disc diameter

300 mm

Rear brake disc diameter

240 mm

Front brake

2x radially mounted 4 piston caliper

Rear brake

Single-piston floating calliper

Chain

520 X-Ring

Frame design

Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated

Front suspension

WP APEX 43

Ground clearance

170 mm

Handlebar

Aluminium, tapered Ø 28/22 mm

Rear suspension

WP APEX - Monoshock

Seat height

820 mm

Silencer

Stainless steel primary and secondary silencer

Steering head angle

65.5 °

Rear subframe design

Cast aluminium, powder coated

Suspension travel (front)

140 mm

Suspension travel (rear)

150 mm

Wheels

3.50 x 17"; 5.50 x 17"

Wheels

Cast aluminium wheels

Wheelbase

1.475 ± 15 mm

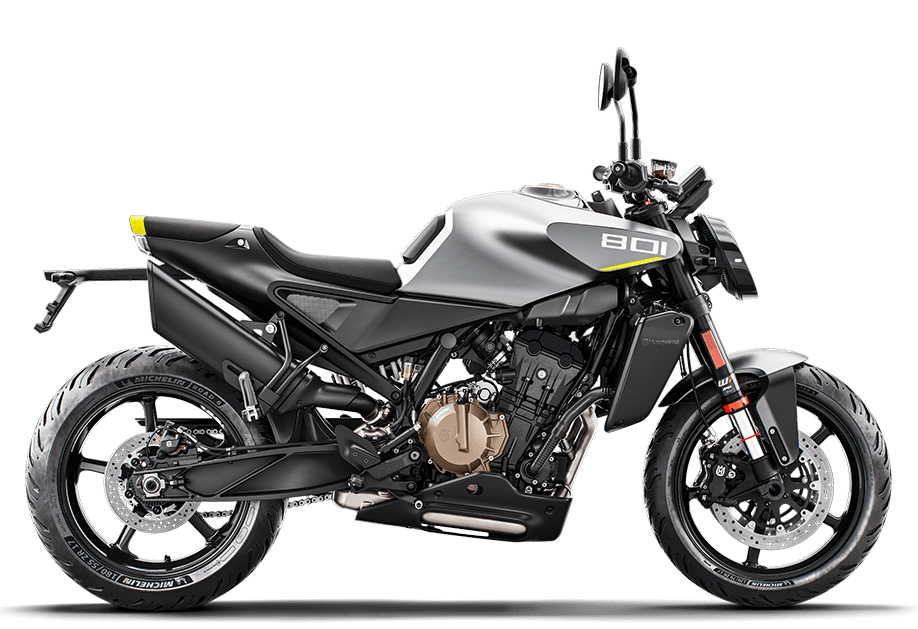

Vitpilen 801

The Vitpilen 801 is a highly capable and dynamic roadster that delivers a riding experience like nothing before it. Taking design inspiration from the Swedish heritage of the brand, this beautifully crafted, modern motorcycle is characterized by its LED projector lens headlight, which features a surrounding light ring for an unmistakable look. Pure performance comes from the 799 cc parallel-twin engine with multiple electronic rider aids tailoring the delivery for a customized set-up. Personalization extends to the premium, adjustable WP suspension and a choice of up to four ride modes that ensure the Vitpilen 801 is accessible to a broad range of riders.

Exterior

With a roadster-inspired design, the Vitpilen 801 only features essential bodywork that wraps tightly around the upper frame to create a close connection between the rider and the machine. The unique and progressive styling is boosted by the striking graphics and contrasting tones that combine to exude a distinctive appearance. Up front, and giving the Vitpilen 801 a progressive identity, a Bi-LED headlight sits proudly and lights up the road when the sun goes down

Frame

The Vitpilen 801 delivers advanced agility and stability through its compact tubular steel frame, with its geometry developed for a new breed of street motorcycle. Strong and light hydro-formed components are laser cut and robot welded to ensure precision and durability while a calculated balance of flex and rigidity offers outstanding feedback.

LED projector lens

Illuminating the way in low-light situations, the Bi-LED headlight provides a seriously bright output and creates an unmistakable look for the Vitpilen 801. To make sure the machine is clearly visible at all times, a light ring surrounds the headlight and adds a distinctive style to the front end. At the rear, an LED taillight and turn signals integrate neatly into the bodywork to ensure the smooth contours of the bodywork are left undisturbed.

Handlebar

Lightweight, anodized black, and with a flat bend, the aluminum handlebars ooze style and provide a perfect amount of flex for riders to feel what the chassis is doing beneath them. A WP steering damper boosts front wheel stability while adjustable bar mounts allow riders to set their preferred position for the handlebars.

Tank

Central to the design concept of the Vitpilen 801, the 3.7-gallon (14-liter), bullet-shaped fuel tank is housed inside a unique cover that provides extensive knee contact for a confidence-inspiring ride. This allows riders to move freely when accelerating and braking, for maximum control.

Seat

A new bolt-on trellis subframe lowers the height of the one-piece rider and pillion seat to 32.2 in (820 mm), to ensure the Vitpilen 401 accommodates a wider range of riders. Comfort is assured thanks to the revised curvature of the seat foam and the high-quality materials used to manufacture the cover.
