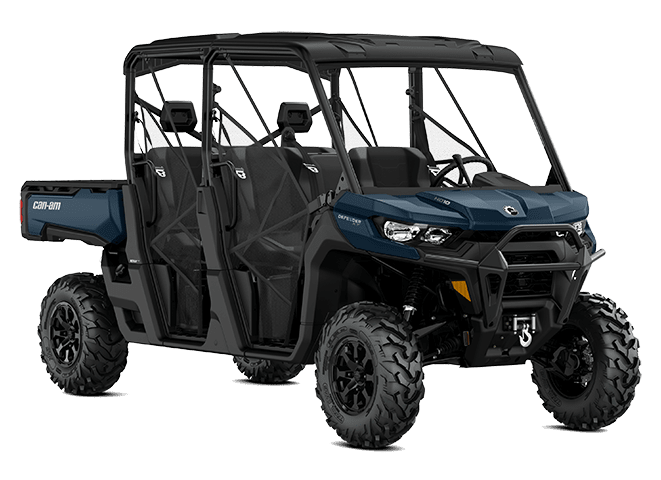

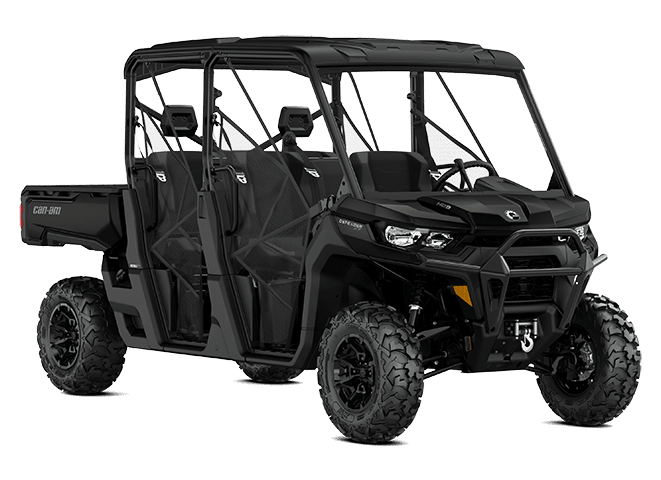

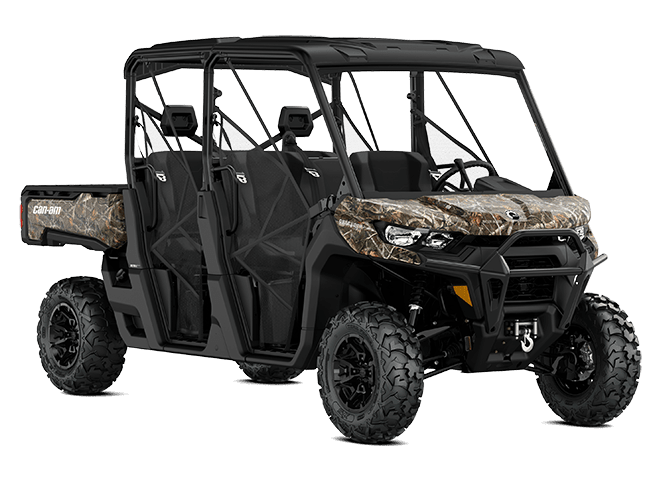

2025 Can-Am Defender MaX XT

Wildland Camo
Dusty Navy
Stealth Black

Specs and Features

ENGINE
Type
HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled
Fuel Delivery System
Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)
Transmission
PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive Train
HD9: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential HD10: Selectable Turf Mode / 2WD / 4WD auto-Locking front differential
Driving Assistance
CVT Engine Braking ECO™ / ECO™ Off / Work modes, Speed Limiter
Power Steering
Dynamic Power Steering (DPS)
SUSPENSION
Front Suspension
HD9: Double A-arm / 10 in. (25.4 cm) suspension travel HD10: Arched double A-arm / 11 in. (27.9 cm) suspension travel
Front Shocks
Twin tube gas charged shocks
Rear Suspension
HD9: TTA with external sway bar / 10 in. (25.4 cm) suspension travel HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) suspension travel
Rear Shocks
Twin tube gas charged shocks
TIRES/WHEELS
Front Tires
HD9: XPS Trail Force 27 x 9/11 x 14 in. HD10: XPS Trail King 27 x 9/11 x 14 in.
Rear Tires
HD9: XPS Trail Force 27 x 9/11 x 14 in. HD10: XPS Trail King 27 x 9/11 x 14 in.
Wheels
14 in. cast-aluminum
BRAKES
Front
Dual 220 mm disc brakes with hydraulic twin-piston calipers
Rear
Dual 220 mm disc brakes with hydraulic twin-piston calipers
Technology
Brake holding mechanism
DIMENSIONS / CAPACITIES
Length
158.3 in. (402 cm)
Width
64 in. (162.6 cm) 63.5 in. (161.2 cm)
Height
79.5 in ( 202 cm) 76 in (193 cm)
L x W x H
HD9: 158.3 x 63.5 x 76 in. (402 x 161.2 x 193cm) HD10: 158.3 x 64 x 79.5 in. (402 x 162.5 x 202cm)
Wheel Base
115.5 in. (294 cm)
Ground Clearance
HD9: 11 in. (28 cm) HD10: 13 in. (33 cm)
Chassis Cage
Profiled cage ROPS approved
Estimated Dry Weight*
HD9: 1,902 lb (863 kg) HD10: 1,928 lb (875 kg)
Cargo Box Dimensions
38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)
Cargo Box Capacity
1,000 lb (454 kg) / California only: 600 lb (272.2 kg)
Tailgate Load Capacity
250 lb (113.4 kg)
Storage Capacity
Total: 16.9 gal (63.9 L)
Towing Capacity
2,500 lb (1,134 kg)
Payload Capacity
1,700 lb (771 kg)
Fuel Capacity
10.6 gal (40 L)
Person Capacity
6
FEATURES
Gauge
4.5 in. wide digital display
Battery
12-V (30 amp/h)
Magneto
650-W
Instrumentation
DC outlet (10-A), USB Port (10-A) x 6 DC outlet (10-A), USB Port (10-A) x 2 DC outlet (10-A), USB Port (10-A) x 3 DC outlet (10-A), USB Port (10-A) x 4 DC outlet (10-A), USB Port (10-A) x 5 DC outlet (10-A), USB Port (10-A) x 7
Lighting
Front lighting output 140-W, LED tail lights
Winch
4,500 lb (2,041 kg) winch with roller fairlead
Seat
VERSA-PRO bolster bench seats with passenger seats flipping up Adjustable driver seat, underside hooks, reinforced XT seat skin
Steering Wheel
Adjustable tilt steering
Protection
XT Front bumper, HMWPE full skid plate, 2-piece full hard roof
Hitch Type
2 in. hitch receiver
GAUGE
Type of gauge
4.5 in. wide digital display
WARRANTY
Factory
1-year BRP Limited warranty
Extended Service Terms
B.E.S.T. term available up to 30 months

Class-leading torque, quieter Rotax engines
HD7, HD9 & HD10
The HD10 engine is class-leading with 69 lb-ft of torque! The break-in period, early maintenance and frequent valve adjustments are all things of the past. The powerpack design delivers an improved riding experience, with less noise & vibration.
Tame the beast
You set the limits
Sometimes you just have to rein in all the power of this workhorse for seeding, crop spraying or moving cargo. With the new speed limiter available on all Defenders, you're the one in control. Get ready for peak work efficiency.
Hydraulic Power Tilt Bed
Unload at the push of a button
Industry-leading cargo box of 4.5 x 6 ft long - with 1,000 lb (454 kg) cargo box capacity, an easy flat-bed conversion and a hydraulic power tilt bed - there’s no limit. This multi-function cargo box can be customize any way you want.
Audio Roof
More than just a roof over your head
Here's the new waterproof sound system available in option. Six 7.7’’ speakers with Bluetooth compatibility, multi-colored LEDs, an RMC amp and a genuine Rockford Fosgate audio receiver to crank up your playlists when you’re out there in the fields herding or baling to the beat of your own drum. Sounds good? You bet!
HVAC
No sweat: Available climate control
Features an automatic & a variable compressor mode that improves efficiency. Dial in heating, ventilation or air conditioning to keep the cabin temperature exactly how you like and lock in that temperature with the painted full doors.
Equipped for anything
Integrated pass-through storage
Exclusive full-width under bed storage for cargo, gear, tools, and more. That's in addition to removable side panels, a dump mechanism, and 100% more loading space than the Defender. Enjoy gimmick-free practicality that's ready to haul with strength and space to spare.
