2025 Can-Am Defender Max DPS

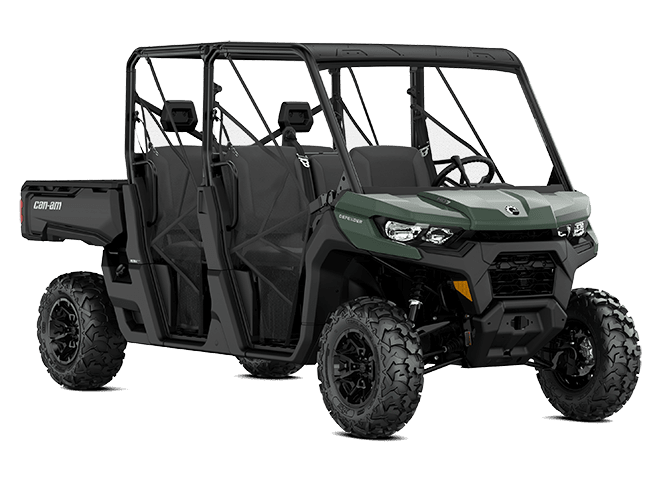

Compass Green

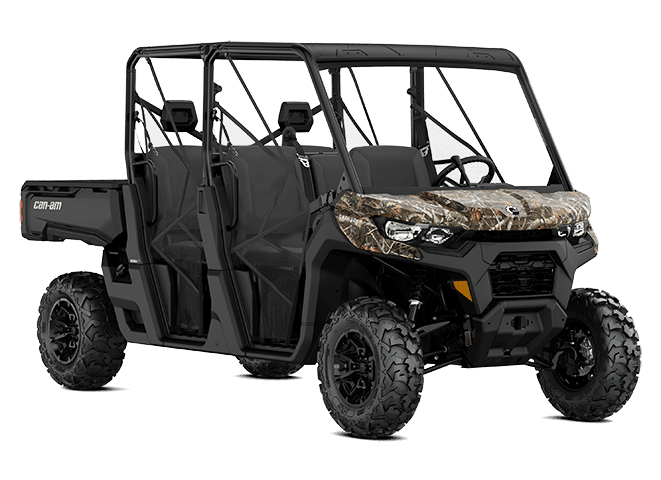

Wildland Camo

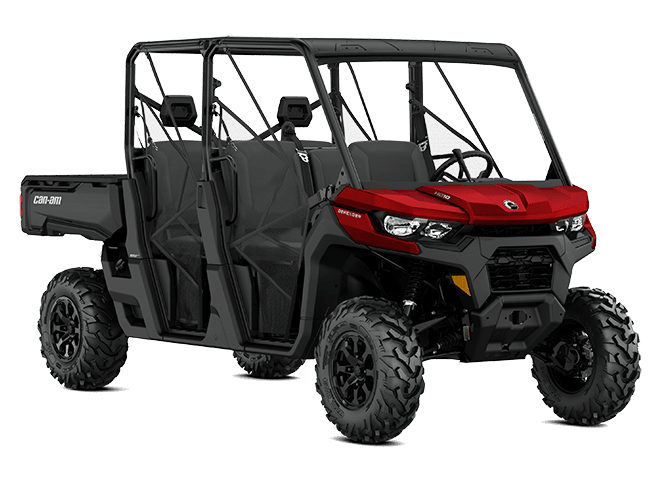

Fiery Red

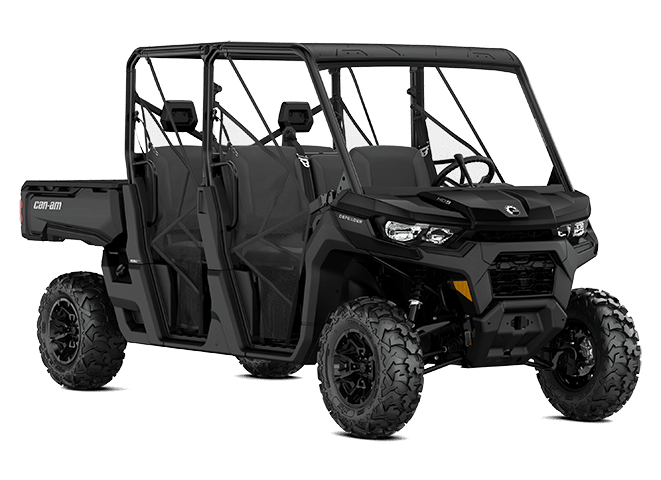

Stealth Black

MSRP: $16,899

Request Info

View Inventory

Back to Showroom

Specs and Features

ENGINE

Type

HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled

Fuel Delivery System

Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)

Transmission

HD7: pDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P HD9: PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P HD10: PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P

Drive Train

HD7: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential HD9: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential H10: Selectable Turf Mode / 2WD / 4WD auto-Locking front differential

Driving Assistance

CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter

Power Steering

Dynamic Power Steering (DPS)

SUSPENSION

Front Suspension

HD7: Double A-arm / 10 in. (25.4 cm) suspension travel HD9: Double A-arm / 10 in. (25.4 cm) suspension travel HD10: Arched double A-arm / 11 in. (27.9 cm) suspension travel

Front Shocks

Twin tube gas charged shocks

Rear Suspension

HD7: TTA with external sway bar / 10 in. (25.4 cm) suspension travel HD9: TTA with external sway bar / 10 in. (25.4 cm) suspension travel HD10: Arched TTA with external sway bar / 11 in. (27.9 cm) suspension travel

Rear Shocks

Twin tube gas charged shocks

TIRES/WHEELS

Front Tires

HD7: XPS Trail Force 27 x 9/11 x 14 in. HD9: XPS Trail Force 27 x 9/11 x 14 in. HD10: XPS Trail King 27 x 9/11 x 14 in.

Rear Tires

HD7: XPS Trail Force 27 x 9/11 x 14 in. HD9: XPS Trail Force 27 x 9/11 x 14 in. HD10: XPS Trail King 27 x 9/11 x 14 in.

Wheels

14 in. cast-aluminum

BRAKES

Front

Dual 220 mm disc brakes with hydraulic twin-piston calipers

Rear

Dual 220 mm disc brakes with hydraulic twin-piston calipers

Technology

N/A

DIMENSIONS / CAPACITIES

Length

153.4 in. ( 389.6 cm)

Width

64 in. (162.6 cm) 63.5 in. (161.2 cm)

Height

77.5 in ( 196.9 cm) 76 in (193 cm)

L x W x H

HD7: 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm) HD9: 153.4 x 63.5 x 76 in. (389.6 x 161.2 x x 193 cm) HD10: 153.4 x 64 x 77.5 in. (389.6 x 162.5 x x 196.9 cm)

Wheel Base

115.5 in. (294 cm)

Ground Clearance

13 in. (33 cm) 11 in. (28 cm)

Chassis Cage

Profiled cage ROPS approved

Estimated Dry Weight*

HD7: 1,736 lb (787 kg) HD9: 1,771 lb (803 kg) HD10: 1,793 lb (813 kg)

Cargo Box Dimensions

38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)

Cargo Box Capacity

1,000 lb (454 kg) / California only: 600 lb (272.2 kg)

Tailgate Load Capacity

250 lb (113.4 kg)

Storage Capacity

Total: 11.1 gal (42.1 L)

Towing Capacity

2,500 lb (1,134 kg)

Payload Capacity

1,700 lb (771 kg)

Fuel Capacity

10.6 gal (40 L)

Person Capacity

FEATURES

Gauge

4.5 in. wide digital display

Battery

12-V (18 amp/h)

Magneto

650-W

Instrumentation

DC outlet (10-A)

Lighting

Front lighting output 140-W, LED tail lights

Winch

N/A

Seat

VERSA-PRO bench seat with passenger seats flipping up Underside hooks

Steering Wheel

Adjustable tilt steering

Protection

Integrated front steel bumper,, HMWPE central skid plate

Hitch Type

2 in. hitch receiver

GAUGE

Type of gauge

4.5 in. wide digital display

WARRANTY

Factory

1-year BRP Limited warranty

Extended Service Terms

B.E.S.T. term available up to 30 months

Class-leading torque, quieter Rotax engine

HD7, HD9 & HD10
The HD10 engine is class-leading with 69 lb-ft of torque! The break-in period, early maintenance and frequent valve adjustments are all things of the past. The powerpack design delivers an improved riding experience, with less noise & vibration.

Tame the beast

You set the limits
Sometimes you just have to rein in all the power of this workhorse for seeding, crop spraying or moving cargo. With the new speed limiter available on all Defenders, you're the one in control. Get ready for peak work efficiency.

Hydraulic Power Tilt Bed

Unload at the push of a button
Industry-leading cargo box of 4.5 x 6 ft long - with 1,000 lb (454 kg) cargo box capacity, an easy flat-bed conversion and a hydraulic power tilt bed - there’s no limit. This multi-function cargo box can be customize any way you want.

Audio Roof

More than just a roof over your head
Here's the new waterproof sound system available in option. Six 7.7’’ speakers with Bluetooth compatibility, multi-colored LEDs, an RMC amp and a genuine Rockford Fosgate audio receiver to crank up your playlists when you’re out there in the fields herding or baling to the beat of your own drum. Sounds good? You bet!

HVAC

No sweat: Available climate control
Features an automatic & a variable compressor mode that improves efficiency. Dial in heating, ventilation or air conditioning to keep the cabin temperature exactly how you like and lock in that temperature with the painted full doors.

Equipped for anything

Integrated pass-through storage
Exclusive full-width under bed storage for cargo, gear, tools, and more. That's in addition to removable side panels, a dump mechanism, and 100% more loading space than the Defender. Enjoy gimmick-free practicality that's ready to haul with strength and space to spare.
