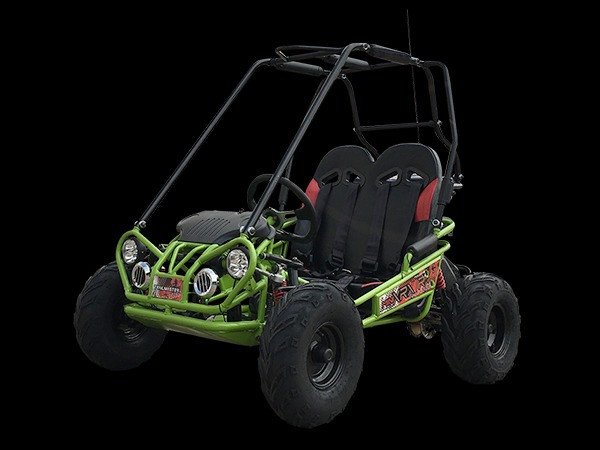

Green

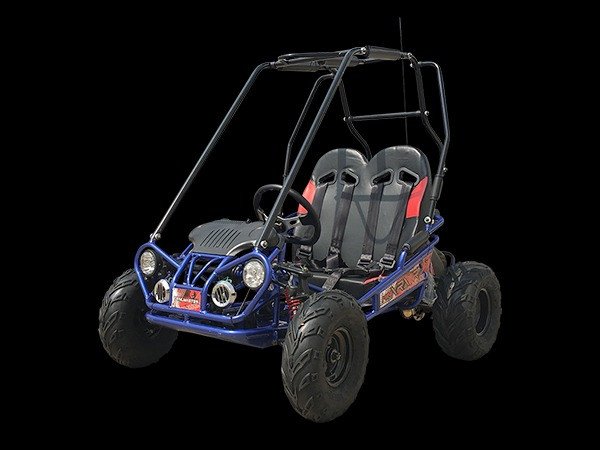

Blue

2024 Trailmaster XRX-RMini+

Trailer

Call for Price

Request Info

View Inventory

Specs and Features

Specifications
Highlighted Features

Engine Information

Engine type

4-stroke, single cylinder, air cooled

Displacement:

163cc

Max HP:

5.5hp/3600rpm

Max torque:

8 lb ft/3600rpm

Bore x stroke:

2.6 x 1.8 inches

Climbing ability:

12 degrees

Ignition:

C.D.I

Starting system:

Electric Start with Pull Start Backup

Battery:

12V 9Ah

Carburetor brand:

JF (RX)

Engine oil:

SAE 15W-40

General Information

Clutch:

Automatic with reverse

Driveline / Driving wheel:

Chain / Dual wheel drive

Suspension, F / R:

Dual A-arm / Double Oil Damped Shock

Brakes

Disc

Tires, F / R:

145X70-6 / 16 X8-7

Fuel capacity:

1.2 gal

Weight, G.W. / N.W.:

280 / 232 lbs

Max load:

300 lbs

Dimension Information

Wheelbase:

42.6 inches

OA L x W x H:

58.7x38.2x48.8 inches

Height to seat:

13.6 inches

Min ground clearance:

4.02 inches

Features

Live Axle, Two-wheel Drive, Electric Start w/Pull Start Back Up, LED Headlight, Remote Start/Kill, Adjustable Sports Seat, Adjustable Pedal, Five Point Safety Seatbelt, Speed Governor, Horn, Age Group: 4-12 yrs.
