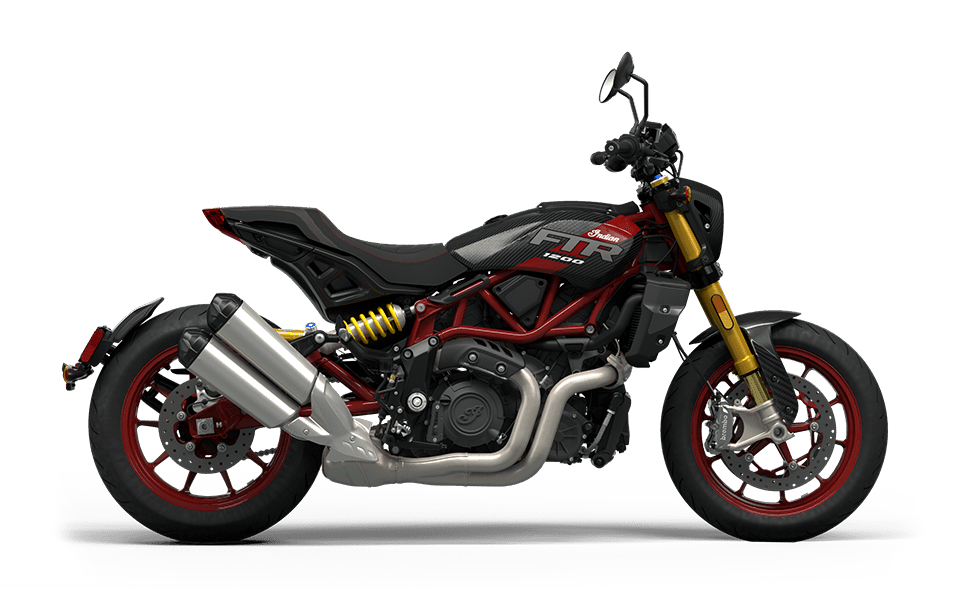

2024 Indian Motorcycle FTR R Carbon

CARBON FIBER

MSRP: $17,249

Request Info

View Inventory

Back to Showroom

Specs and Features

Engine & Drivetrain

Bore x Stroke

4.016 in x 2.898 in (102 mm x 73.6 mm)

Compression Ratio

12.5:1

Displacement

73 cu in (1203 cc)

Drive/Driven Clutch

Assist & Slip, Multi-Plate

Electronic Fuel Injection System

Closed Loop Fuel Injection / 60 mm Bore

Engine Type

Liquid Cooled V-Twin

Exhaust

2-into-1, Catalyst in collector

Gear Ratio (1st)

12.270 : 1

Gear Ratio (2nd)

8.341 : 1

Gear Ratio (3rd)

6.646 : 1

Gear Ratio (4th)

5.639 : 1

Gear Ratio (5th)

4.985 : 1

Gear Ratio (6th)

4.278 : 1

Horsepower

120 HP

Peak Torque

87 ft-lbs (118 Nm)

Peak Torque RPM

6,000 rpm

Transmission/Final Drive

2.647 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

Dimensions

Fuel Capacity

3.4 gal (12.9 L)

Ground Clearance

6.5 in (165 mm)

GVWR

948 lb (430 kg)

Lean Angle

43°

Overall Height

51 in (129.5 cm)

Overall Length

87.5 in (2223 mm)

Overall Width

32.7 in (830 mm)

Rake/Trail

25.3° / 3.9 in ( 99.9 mm)

Seat Height

31.7 in (805 mm)

Weight (Dry Weight / Running Order)

492 lbs (223 kg) / 518 lbs (235 kg)

Wheelbase

60 in (1,524 mm)

Brakes

Front Brakes

Brembo Dual 320mm t5 Rotor / 4 Piston Caliper

Rear Brakes

Brembo Single 260mm t5 Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires

Metzeler Sportec M9 RR 120/70ZR17 58W

Front Wheel

Cast 17 in x 3.5 in

Rear Tires

Metzeler Sportec M9 RR 180/55ZR17 73W

Rear Wheel

Cast 17 in x 5.5 in

Suspension

Front Fork Tube Diameter

43 mm

Front Suspension

Ohlins Fully Adjustable Inverted Telescopic Cartidge Fork

Front Travel

120 mm

Rear Suspension

Ohlins Fully Adjustable Piggyback IFP

Rear Travel

120 mm

Features

Color / Graphics

Carbon Fiber

Factory Warranty

2 Years, Unlimited Miles

Gauges

N/A

Infotainment

4 in Touchscreen powered by RIDE COMMAND. Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.

Lights

LED Headlight, Taillight, Turn Signals

Standard Equipment

Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stabilitiy Control, Traction Control, Wheelie and rear lift Mitigation, USB Charge Port, Cruise Control

AN AMERICAN ORIGINAL

Chiseled, muscular, and sophisticated, the FTR R Carbon is the essense of what a motorcycle should look like. Inspired by our flat track roots, the very things that make it stylish also make it so incredibly functional.

POISED FOR THRILLS

120 HP and 87 ft-lbs of torque provide a torque curve that's as fat as it is flat, and races effortlessly to its 9,000 rpm redline.

ÖHLINS SUSPENSION

Fully adjustable Öhlins
front and rear suspension let you dial in your ride to the exact feel you want - keeping you planted on city streets or back roads without sacrificing handling.

IT'S THE DETAILS

Unmatched fit and finish come courtesy of a premium stitched seat and carbon fiber components throughout. You'll get unmatched comfort - and emotion - every time you sit on it.

INFOTAINMENT

Design detail meets modern function in a class-leading and industry first 4-in touchscreen powered by RIDE COMMAND, featuring intuitive search navigation with Bluetooth
tethering customizable to your preferences with the touch of a finger.

STOPPING POWER

Adjustable 43mm upside down front fork and single exposed rear shock make the FTR stand out. Massive Brembo
4-piston mono block calipers grab dual 320mm rotors and are specifically tuned for incredible control and braking power.

RIDING POSITION

Designed after our dominant FTR 750 flat track racer, FTR is optimized for street performance. Lightweight 17-inch cast wheels front and back are easily flickable and wear super sticky Metzeler Sportec
rubber that glue you to the road.
