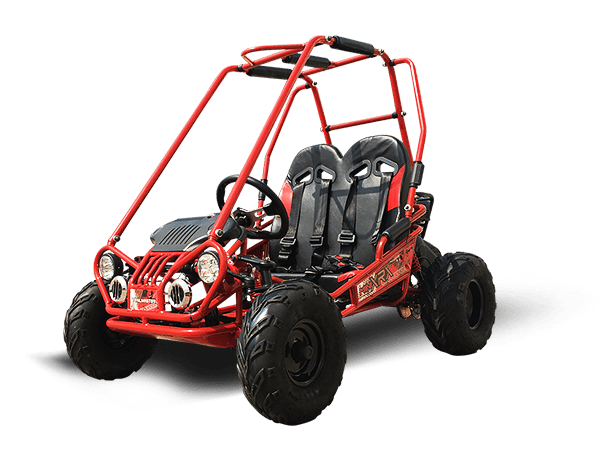

2025 Trailmaster MIni XRX+

Trailer

Call for Price

Request Info

View Inventory

Specs and Features

Specifications
Highlighted Features

Engine Information

EPA certified and CARB approved

Engine type

4-stroke, single cylinder, air cooled

Displacement

163cc

Max HP

5.5hp/3600rpm

Max torque

8 lb ft/3600rpm

Bore x stroke

2.6 x 1.8 inches

Climbing ability

12 degrees

Engine oil

SAE 15W-40

Ignition

C.D.I

Starting system

Electric Start with Pull Start Backup

Battery

12V 9Ah

Carburetor brand

JF (RX)

General Information

Clutch

Automatic

Driveline / Driving wheel

Chain / Dual wheel drive

Suspension, F / R

Dual A-arm / Double Oil Damped Shock

Brakes

Disc

Tires, F / R

145X70-6 / 16 X8-7

Fuel capacity

1.2 gal

Weight, G.W. / N.W.

280 / 232 lbs

Max load

300 lbs

Dimension Information

Wheelbase

42.6 inches

OA L x W x H

58.7x38.2x48.8 inches

Height to seat

13.6 inches

Min ground clearance

4.02 inches

Pedal to seat back

30” to 35”; Pedal can also adjusted to 3” or 6” shorter.
