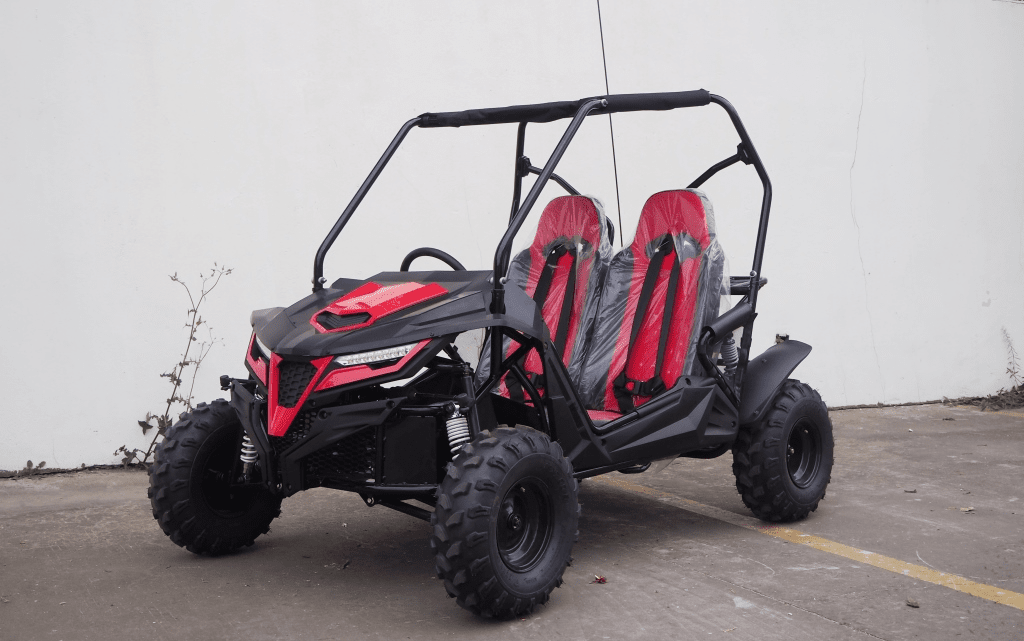

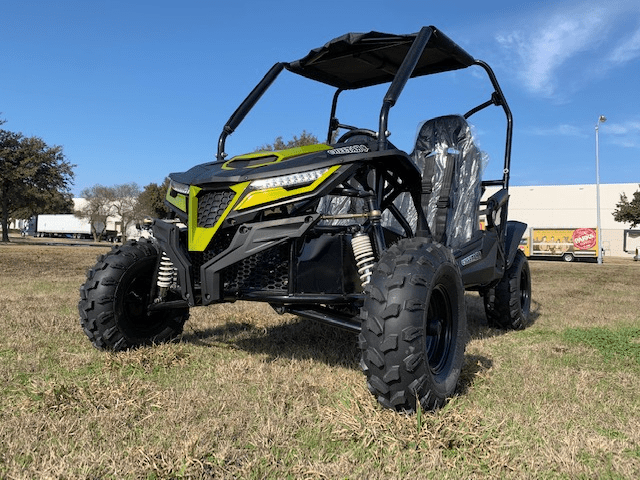

2025 Trailmaster Cheetah8

Trailer
Call for Price

Specs and Features

Engine Information
EPA certificated
Engine type
4-stroke, single cylinder, air cooled, Horizontal OHV Engine
Displacement
208cc, 7.5HP
Max HP
7.5hp/3600rpm
Max torque
8 lb ft/2800rpm
Bore x stroke
2.76x2.13 inches
Max speed
32 mph
Climbing ability
12 degrees
Ignition
C.D.I
Starting system
Electric or Pull
Battery
12V 10Ah
Carburetor brand
JF210N.9.1C
Engine oil
SAE 15W-40
General Information
Clutch
Automatic torque converter CVT with reverse
Driveline / Driving wheel
Chain / Dual wheel drive
Suspension F / R
Double A-arm / swing-arm
Brake
Rear disc
Tires, F / R
18X7-8 / 18X7-8
Wheel
Steel
Fuel capacity
1 gal
Weight, G.W. / N.W.
485 / 400 lbs
Max load
400 lbs
Dimension Information
Wheelbase
57 inches
OA L x W x H
79x51x56.3 inches
Height to seat
15.7 inches
Min ground clearance
4 inches
Pedal to seat back distance
32ā€ to 38ā€
Packing size
79X45X26 inches
