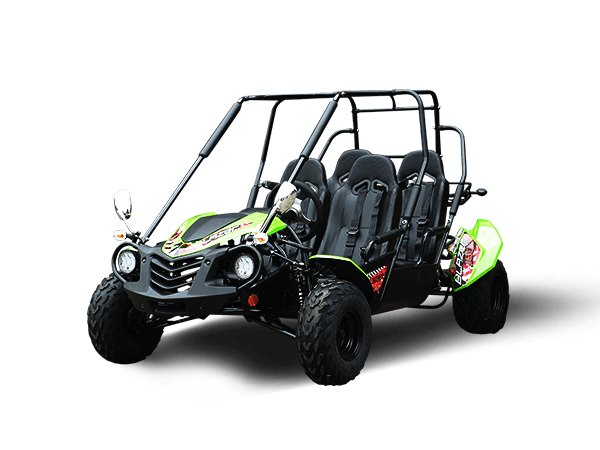

Green

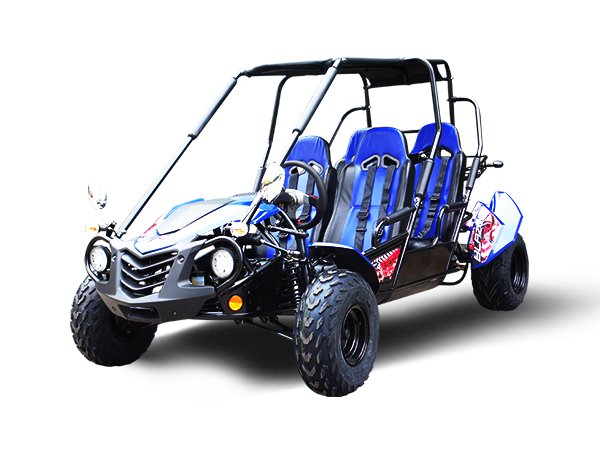

Blue

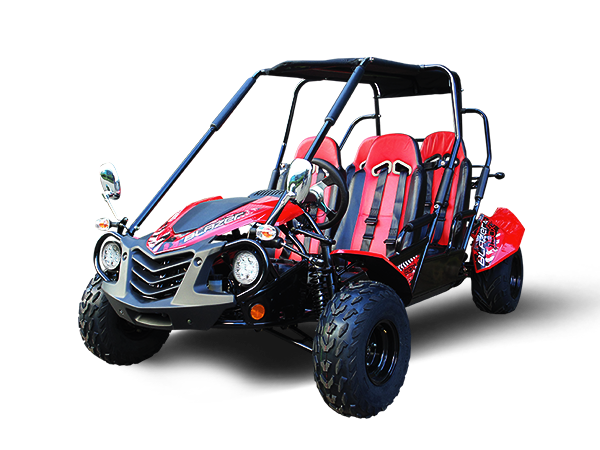

Red

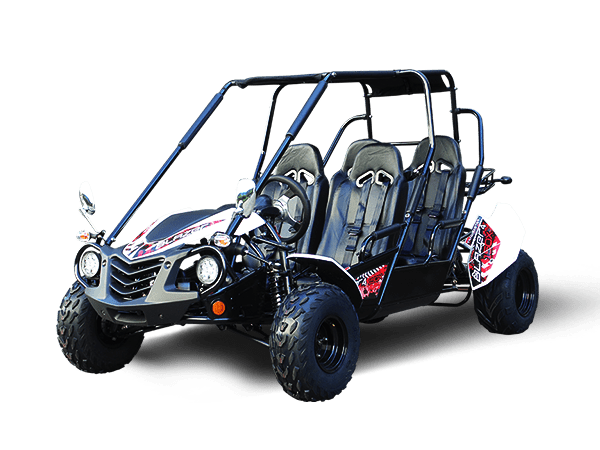

White

2025 Trailmaster Blazer4200[E]X

Trailer

Call for Price

Request Info

View Inventory

Specs and Features

Specifications
Highlighted Features

Engine Information

EPA certificated

Engine type

4-stroke, single cylinder, air cooled

Displacement

168.9cc

Max HP

11.1hp/8000rpm

Max torque

8.1 lb ft/6000rpm

Bore x stroke

2.4x2.28 inches

Climbing ability

18 degrees

Min. turning radius

229 inches

Ignition

ECU (for Blazer4 200EX) & C.D.I (for Blazer4 200X)

Starting system

Electric

Battery

12V 10Ah

Engine oil

SAE 15W/40

General Information

Clutch

Automatic CVT with reverse

Driveline / Driving wheel

Chain / Dual wheel drive

Suspension, F / R

Dual A-arm / swing-arm

Brakes, F / R

Both hydraulic brakes, Disc

Tires, F / R

20 x 7-8 / 21 x 10-10

Fuel capacity

2.25 gal

Weight, G.W. / N.W.

850 lbs/ 728 lbs

Max load

800 lbs

Dimension Information

Wheelbase

88 inches

OA L x W x H

116.1x54.5x55.5 inches

Height to seat, F/R

17 inches/ 20 inches

Distance from F to R seat

26 inches

Min ground clearance

15.8 inches

Pedal to seat back distance

36-42 inches
