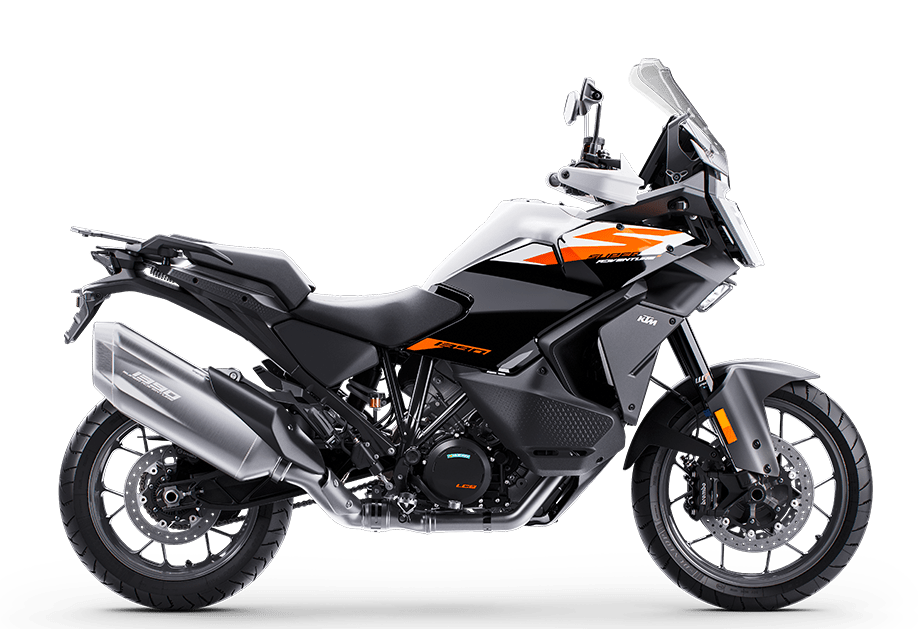

2025 KTM 1390 Super Adventure S

Orange
Black

Specs and Features

ENGINE
Primary drive
40:76
Torque
145 Nm
Transmission
6-speed
Cooling
Liquid cooled with water/oil heat exchanger
Secondary gear ratio
17:42
Power in KW
127 kW
Starter
Electric starter
Stroke
71 mm
Bore
110 mm
CO2 emissions
139.5 g/km
Compression ratio
13
Displacement
1350 cm³
EMS
Keihin EMS with RBW, twin ignition
Design
2-cylinder, 4-stroke, V 75°
Fuel consumption
6.7 l/100 km
Fuel-mixture generation
Keihin EFI (throttle body Ƙ 54 mm)
Lubrication
Forced oil lubrication with 3 oil pumps
Power in hp
170 hp
CHASSIS
Weight (without fuel)
227 kg
Tank capacity (approx.)
23 l
Wheelbase
1558 mm
Front brake
2 x Brembo 4-piston, radially mounted caliper, brake disc Ƙ 320 mm
Rear brake
Brembo 2-piston, fixed caliper, brake disc Ƙ 267 mm
Chain
525 X-Ring
Frame design
Chromium-Molybdenum-Steel trellis frame, powder coated
Front suspension
WP SAT (semi-active technology) Upside-Down Ƙ 48 mm
Ground clearance
223 mm
Handlebar
Tapered aluminum Ƙ 28/22 mm
Rear suspension
WP SAT (semi-active technology) shock absorber
Seat height
847/867 mm
Steering head angle
65.2 °
Rear subframe design
Aluminium, powder-coated
Suspension travel (front)
200 mm
Suspension travel (rear)
200 mm
Tyre dimensions (front/rear)
120/70; 170/60
Wheels
3.50 x 19"; 5 x 17"
Wheels
Cast aluminium wheels
Wheelbase
1558 ± 15 mm

2025 KTM 1390 Super Adventure S

The KTM 1390 SUPER ADVENTURE S is for thrill-seekers who live for fast-paced adventure and demand the control of a manual transmission. Boasting fresh new tech, muscular looks, and a 173 hp punch, the S is aimed at riders who want to explore the world on the tarmac - but with the option to hit the dirt if it calls - this street-eating Adventure machine is engineered to cover ground. Fast. This motorcycle is designed, developed, and produced in Austria.
