2025 Can-Am Defender Max X MR With Half-Doors

Hyper Silver & Legion Red

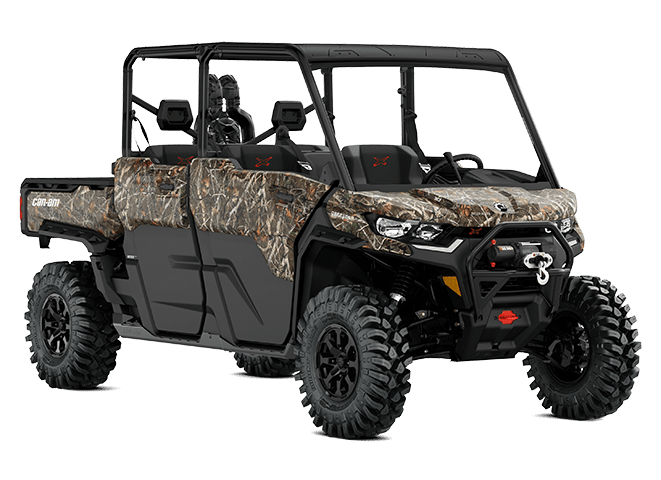

Wildland Camo

MSRP: $28,399

Request Info

View Inventory

Back to Showroom

Specs and Features

ENGINE

Type

82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake

Fuel Delivery System

Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)

Transmission

PRO-TORQ Transmission with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust Extra-L / H / N / R / P

Drive Train

Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok*

Driving Assistance

CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter CVT Engine Braking ECO™ / ECO™ Off / Work modes, Speed Limiter

Power Steering

Dynamic Power Steering (DPS)

SUSPENSION

Front Suspension

Arched double A-arm with sway bar / 12 in. (30.5 cm) suspension travel

Front Shocks

Twin tube gas charged shocks

Rear Suspension

Arched TTA with external sway bar / 12 in. (30.5 cm) suspension travel

Rear Shocks

Twin tube gas charged shocks

TIRES/WHEELS

Front Tires

XPS Swamp Force 30 x 9/11 x 14 in.

Rear Tires

XPS Swamp Force 30 x 9/11 x 14 in.

Wheels

14 in. cast-aluminum

BRAKES

Front

Dual 220 mm disc brakes with hydraulic twin-piston calipers

Rear

Dual 220 mm disc brakes with hydraulic twin-piston calipers

Technology

Brake holding mechanism

DIMENSIONS / CAPACITIES

Length

161.9 in (411.2 cm)

Width

64 in. (162.6 cm)

Height

82 in. (208.3 cm)

L x W x H

161.9 x 64 x 82 in. (411.2 x 162.6 x 208.3 cm)

Wheel Base

115.5 in. (294 cm)

Ground Clearance

15 in. (38.1 cm)

Chassis Cage

Profiled cage ROPS approved

Estimated Dry Weight*

2,174 lb (986 kg)

Cargo Box Dimensions

38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)

Cargo Box Capacity

1,000 lb (454 kg) / California only: 600 lb (272.2 kg)

Tailgate Load Capacity

250 lb (113.4 kg)

Storage Capacity

Total: 16.9 gal (63.9 L)

Towing Capacity

2,500 lb (1,134 kg)

Payload Capacity

1,425 lb (646 kg)

Fuel Capacity

10.6 gal (40 L)

Person Capacity

FEATURES

Gauge

7.6 in. wide digital display with keypad

Battery

12-V (30 amp/h)

Magneto

650-W

Instrumentation

DC outlet (10-A), USB Port (10-A) x 4

Lighting

Front lighting output 140-W, LED signature, LED tail lights

Winch

Relocated 4,500 lb (2,041 kg) winch with synthetic rope and roller fairlead

Seat

VERSA-PRO bolster bench seats with passenger seats flipping up Adjustable driver seat, underside hooks, reinforced seat skin featuring X package trims

Steering Wheel

Adjustable tilt steering

Protection

Premium half doors, Heavy-duty front steel bumper, HMWPE full skid plate, Aluminum rock sliders, Mudguards

Hitch Type

2 in. hitch receiver

GAUGE

Type of gauge

7.6 in. wide digital display with keypad

WARRANTY

Factory

1-year BRP Limited warranty

Extended Service Terms

B.E.S.T. term available up to 30 months

Defender MAX X mr with half-doors

CLOSE THE DOOR ON SURPRISES. The ultimate mud workhorse you love, with Premium Half Doors. Featuring 6 seats, a Rotax® HD10 V-Twin engine, Smart-Lok™ differential, 15 in. ground clearance, a winch, and more.

Class-leading torque, quieter Rotax engines

HD7, HD9 & HD10
The HD10 engine is class-leading with 69 lb-ft of torque! The break-in period, early maintenance and frequent valve adjustments are all things of the past. The powerpack design delivers an improved riding experience, with less noise & vibration.

Tame the beast

You set the limits
Sometimes you just have to rein in all the power of this workhorse for seeding, crop spraying or moving cargo. With the new speed limiter available on all Defenders, you're the one in control. Get ready for peak work efficiency.

Hydraulic Power Tilt Bed

Unload at the push of a button
Industry-leading cargo box of 4.5 x 6 ft long - with 1,000 lb (454 kg) cargo box capacity, an easy flat-bed conversion and a hydraulic power tilt bed - there’s no limit. This multi-function cargo box can be customize any way you want.

Audio Roof

More than just a roof over your head
Here's the new waterproof sound system available in option. Six 7.7’’ speakers with Bluetooth compatibility, multi-colored LEDs, an RMC amp and a genuine Rockford Fosgate audio receiver to crank up your playlists when you’re out there in the fields herding or baling to the beat of your own drum. Sounds good? You bet!

HVAC

No sweat: Available climate control
Features an automatic & a variable compressor mode that improves efficiency. Dial in heating, ventilation or air conditioning to keep the cabin temperature exactly how you like and lock in that temperature with the painted full doors.

Equipped for anything

Integrated pass-through storage
Exclusive full-width under bed storage for cargo, gear, tools, and more. That's in addition to removable side panels, a dump mechanism, and 100% more loading space than the Defender. Enjoy gimmick-free practicality that's ready to haul with strength and space to spare.
