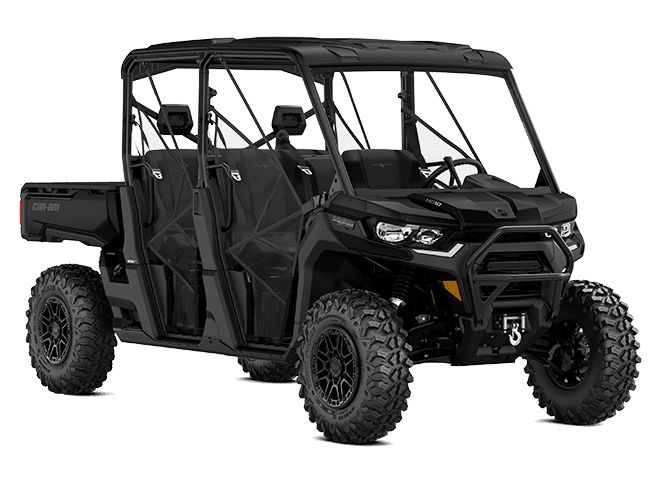

2025 Can-Am Defender Max Lone Star

Stealth Black

MSRP: $25,499

Request Info

View Inventory

Back to Showroom

Specs and Features

ENGINE

Type

82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled

Fuel Delivery System

Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)

Transmission

PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P

Drive Train

Selectable Turf Mode / 2WD / 4WD with exclusive Smart-Lok*

Driving Assistance

CVT Engine Braking ECO™ / ECO™ Off / Work modes, Speed Limiter

Power Steering

Dynamic Power Steering (DPS)

SUSPENSION

Front Suspension

Arched double A-arm with sway bar / 12 in. (30.5 cm) suspension travel

Front Shocks

Twin tube gas charged shocks

Rear Suspension

Arched TTA with external sway bar / 12 in. (30.5 cm) suspension travel

Rear Shocks

Twin tube gas charged shocks

TIRES/WHEELS

Front Tires

XPS Trac Force 30 x 9/10 x 15 in.

Rear Tires

XPS Trac Force 30 x 9/10 x 15 in.

Wheels

15 in. cast-aluminum

BRAKES

Front

Dual 220 mm disc brakes with hydraulic twin-piston calipers

Rear

Dual 220 mm disc brakes with hydraulic twin-piston calipers

Technology

Brake holding mechanism

DIMENSIONS / CAPACITIES

Length

158.9 in. (403.6 cm)

Width

65 in. (165.1 cm)

Height

80.9 in. ( 228.5 cm)

L x W x H

158.9 x 65 x 80.9 in. (403.6 x 165.1 x 228.5 cm)

Wheel Base

115.5 in. (294 cm)

Ground Clearance

14 in. (35.6 cm)

Chassis Cage

Profiled cage ROPS approved

Estimated Dry Weight*

1,977 lb (897 kg)

Cargo Box Dimensions

38 x 54.5 x 12 in. (96.5 x 138.4 x 30.5 cm)

Cargo Box Capacity

1,000 lb (454 kg) / California only: 600 lb (272.2 kg)

Tailgate Load Capacity

250 lb (113.4 kg)

Storage Capacity

Total: 16.9 gal (63.9 L)

Towing Capacity

2,500 lb (1,134 kg)

Payload Capacity

1,700 lb (771 kg)

Fuel Capacity

10.6 gal (40 L)

Person Capacity

FEATURES

Gauge

7.6 in. wide digital display with keypad

Battery

12-V (30 amp/h)

Magneto

650-W

Instrumentation

DC outlet (10-A), USB Port (10-A) x 2

Lighting

Front lighting output 140-W, LED tail lights

Winch

4,500 lb (2,041 kg) winch with roller fairlead

Seat

Dual VERSA-PRO bolster bench seats with passenger seats flipping up Adjustable driver seat, underside hooks, reinforced seat skin featuring Lone Star package trims

Steering Wheel

Adjustable tilt steering

Protection

Heavy-duty front steel bumper, HMWPE full skid plate, 2-piece full hard roof, Aluminum rock sliders

Hitch Type

2 in. hitch receiver

GAUGE

Type of gauge

7.6 in. wide digital display with keypad

WARRANTY

Factory

1-year BRP Limited warranty

Extended Service Terms

B.E.S.T. term available up to 30 months

Defender MAX LONE STAR

BUILT FOR HIGHER GROUND. The ultimate Defender MAX Lone Star, upgraded from top to bottom: 6-person seating, industry-leading Rotax® HD10 engine, unique interior trim—and tons of factory extras.

Class-leading torque, quieter Rotax engines

HD7, HD9 & HD10
The HD10 engine is class-leading with 69 lb-ft of torque! The break-in period, early maintenance and frequent valve adjustments are all things of the past. The powerpack design delivers an improved riding experience, with less noise & vibration.

Tame the beast

You set the limits
Sometimes you just have to rein in all the power of this workhorse for seeding, crop spraying or moving cargo. With the new speed limiter available on all Defenders, you're the one in control. Get ready for peak work efficiency.

Hydraulic Power Tilt Bed

Unload at the push of a button
Industry-leading cargo box of 4.5 x 6 ft long - with 1,000 lb (454 kg) cargo box capacity, an easy flat-bed conversion and a hydraulic power tilt bed - there’s no limit. This multi-function cargo box can be customize any way you want.

Audio Roof

More than just a roof over your head
Here's the new waterproof sound system available in option. Six 7.7’’ speakers with Bluetooth compatibility, multi-colored LEDs, an RMC amp and a genuine Rockford Fosgate audio receiver to crank up your playlists when you’re out there in the fields herding or baling to the beat of your own drum. Sounds good? You bet!

HVAC

No sweat: Available climate control
Features an automatic & a variable compressor mode that improves efficiency. Dial in heating, ventilation or air conditioning to keep the cabin temperature exactly how you like and lock in that temperature with the painted full doors.

Equipped for anything

Integrated pass-through storage
Exclusive full-width under bed storage for cargo, gear, tools, and more. That's in addition to removable side panels, a dump mechanism, and 100% more loading space than the Defender. Enjoy gimmick-free practicality that's ready to haul with strength and space to spare.
