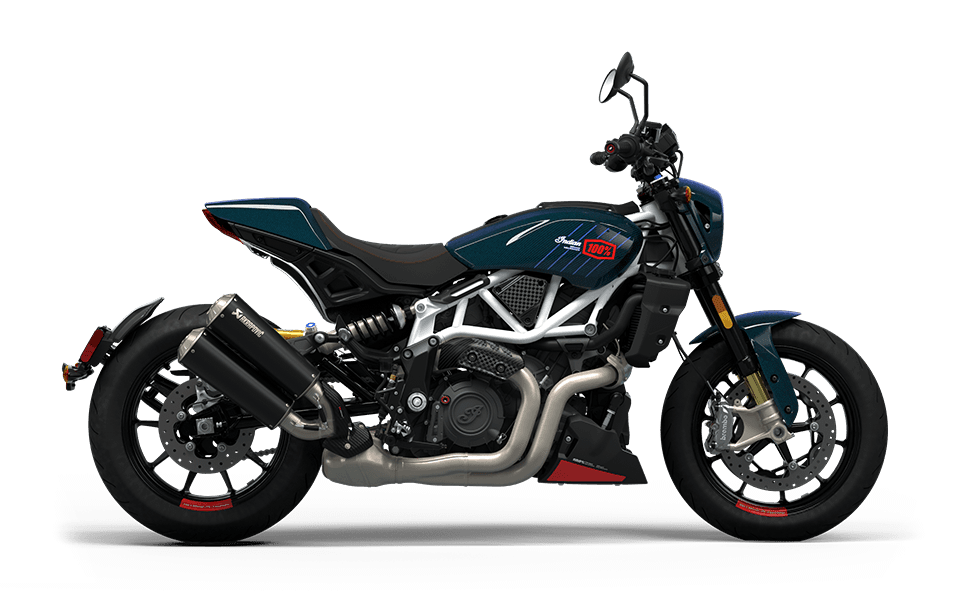

2024 Indian Motorcycle FTR X 100% R Carbon

BLUE CANDY CARBON

MSRP: $18,999

Request Info

View Inventory

Back to Showroom

Specs and Features

Engine & Drivetrain

Bore x Stroke

4.016 in x 2.898 in (102 mm x 73.6 mm)

Compression Ratio

12.5:1

Displacement

73 cu in (1203 cc)

Drive/Driven Clutch

Assist & Slip, Multi-Plate

Electronic Fuel Injection System

Closed Loop Fuel Injection / 60 mm Bore

Engine Type

Liquid Cooled V-Twin

Exhaust

2-into-1, Catalyst in collector

Gear Ratio (1st)

12.270 : 1

Gear Ratio (2nd)

8.341 : 1

Gear Ratio (3rd)

6.646 : 1

Gear Ratio (4th)

5.639 : 1

Gear Ratio (5th)

4.985 : 1

Gear Ratio (6th)

4.278 : 1

Horsepower

120 HP

Peak Torque

87 ft-lbs (118 Nm)

Peak Torque RPM

6,000 rpm

Transmission/Final Drive

2.647 : 1

Transmission/Primary Drive

Gear Drive Wet Clutch

Dimensions

Fuel Capacity

3.4 gal (12.9 L)

Ground Clearance

6.5 in (165 mm)

GVWR

948 lb (430 kg)

Lean Angle

43°

Overall Height

51 in (129.5 cm)

Overall Length

87.5 in (2223 mm)

Overall Width

32.7 in (830 mm)

Rake/Trail

25.3° / 3.9 in ( 99.9 mm)

Seat Height

31.7 in (805 mm)

Weight (Dry Weight / Running Order)

488 lbs (221 kg) / 518 lbs (235 kg)

Wheelbase

60 in (1,524 mm)

Brakes

Front Brakes

Brembo Dual 320mm t5 Rotor / 4 Piston Caliper

Rear Brakes

Brembo Single 260mm t5 Rotor / 2 Piston Caliper

Tires / Wheels

Front Tires

Metzeler Sportec M9 RR 120/70ZR17 58W

Front Wheel

Cast 17 in x 3.5 in

Rear Tires

Metzeler Sportec M9 RR 180/55ZR17 73W

Rear Wheel

Cast 17 in x 5.5 in

Suspension

Front Fork Tube Diameter

43 mm

Front Suspension

Ohlins Fully Adjustable Inverted Telescopic Cartidge Fork

Front Travel

120 mm

Rear Suspension

Ohlins Fully Adjustable Piggyback IFP

Rear Travel

120 mm

Features

Color / Graphics

Blue Candy Carbon

Factory Warranty

2 Years, Unlimited Miles

Gauges

N/A

Infotainment

4 in Touchscreen powered by RIDE COMMAND. Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.

Lights

LED Headlight, Taillight, Turn Signals

Standard Equipment

Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stability Control, Traction Control, Wheelie and rear lift Mitigation, USB Charge Port, Cruise Control

All In, All the Time

We collaborated with 100% to create the ultimate statement for those who give 100% effort.

UNMISTAKABLE STYLE

A striking Candy Blue Carbon Fiber finish with a white trellis frame and red accents, adorned by Indian Motorcycle x 100% branding throughout the bike.

DOMINATING PERFORMANCE

FTR x 100% R Carbon boasts a thoroughly modern American V-Twin, tightly packed into a perfectly balanced street chassis giving nimble, confident handling and a sporty ride like nothing else.

POISED FOR THRILLS

The character of a high-revving, liquid-cooled American V-twin is unique, and at the heart of what makes FTR remarkable. 123 HP and 87 ft-lbs of torque provide a torque curve that's as fat as it is flat, and races effortlessly to its 9000 RPM redline.

4-inch touchscreen powered by RIDE COMMAND

Design detail meets modern function in a class-leading and industry first 4-inch touchscreen powered by RIDE COMMAND, featuring intuitive search navigation with Bluetooth
tethering. What's more, it's completely customizable to your preferences with the touch of a finger.

The Best Ride Enhancing Tech

Three ride modes (Sport, Standard, or Rain) maximize your thrills and Lean Angle Sensitive Stability Control and ABS provide confident, predictable handling in all conditions. Traction control, cornering pre-control, and wheelie mitigation are there too. Both traction control and wheelie mitigation can be turned off.

Confidence Inspiring Riding Position

Originally designed after our dominant, championship winning FTR 750 flat track racer, the new FTR is fully optimized for ultimate street performance, where real riders dominate. Lightweight 17-inch cast wheels front and back are easily flickable and wear super sticky Metzeler
Sportec rubber that glue you to the road.

Fully Adjustable Blacked Out Öhlins® Suspension

Fully adjustable Blacked Out Öhlins
front and rear suspension let you dial in your ride to the exact feel you want - keeping you planted on city streets or back roads without sacrificing handling.

Stopping Power

Fully adjustable 43mm upside down front fork and single, exposed rear shock make the FTR stand out in the crowd. Massive Brembo
4-piston mono block calipers grab dual 320mm rotors and are specifically tuned for incredible control and braking power.

It's in the details

Unmatched fit and finish come courtesy of a premium stitched seat and carbon fiber components throughout. You'll get unmatched comfort - and emotion - every time you sit on it.
