EE 3

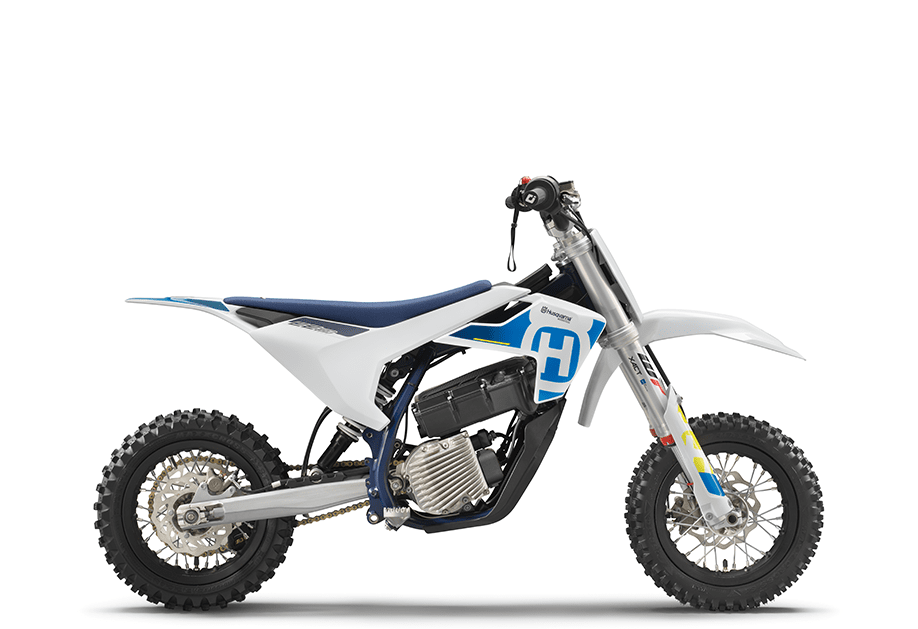

New for 2023, the EE 3 is the perfect machine for introducing young riders into the exciting world of offroad riding. Powered by a state-of-the-art electric motor capable of producing 3.8 kW of peak power, the EE 3 is expertly assembled with a chromium molybdenum frame, WP suspension, and high quality components. With six ride modes, customisable ergonomics thanks to an adjustable seat height, the EE 3 allows riders to increase their confidence as they grow, learning the fundamentals of riding offroad in a controllable manner. Additionally, the pioneering EE 3 produces next to no sound, which makes it perfect for riding in areas sensitive to sound emissions.
Electric motor
Producing a peak power output of 3.8 kW, the permanent magnet, electric motor is incredibly compact, slim, and designed specifically for the EE 3 chassis. The air-cooled, water and dust proof motor requires next to no maintenance and features an Electronic Control Unit (ECU) for instant, controllable power.
Battery
Creating power for the electric motor in the EE 3 are 60 modern lithium ion cells, which are housed inside a robust die-cast aluminium casing. These cells store 648 Wh of energy that equates to approximately two hours of general riding or 30 minutes of fast-paced action.
Charger
The external worldwide charger on the EE 3 can be connected to any 110 or 230 Volt socket for fast and easy recharging. Plugging directly into the battery pack, an 80% charge can be achieved in just 30 minutes while a full recharge takes up to 60 minutes.
Multifunctional instrument
Perfectly located just in front of the seat and displaying essential information is a multifunctional instrument. Featuring a button that allows the rider to toggle through six ride mode options, which can be selected based on either the experience of the rider or track conditions, the remaining battery charge is clearly visible at a glance.
Safety
Should a fall or tip over occur, the EE 3 is fitted with a roll-over sensor that immediately cuts power. Should the rider lose control, a wrist lanyard key provides an extra layer of security. Additionally, ride modes can be saved or 'locked' with a dongle located below the seat to prevent younger riders from inadvertently activating more powerful ride modes.
Adjustable seat height
An adjustable seat height allows young riders to progress with the EE 3 as they grow. The standard seat height is 23.6 in (600 mm) can be lowered to 21.8 in (555 mm) quickly and easily in three steps - lower the seat, relocate the mounting position of the rear shock, and moving the forks up through the triple clamps.
Frame
A high-strength chromium molybdenum steel frame houses the electric drivetrain and is expertly assembled with calculated parameters of longitudinal flex and torsional rigidity. This creates a light feeling chassis and enhances the suspension functionality for precise cornering and outstanding stability.
Suspension
The EE 5 is fitted with premium suspension, making it remarkably capable as a mini-racer. On the front, revolutionary lightweight WP XACT 35 mm forks offer exceptional damping and rider comfort. With 205 mm of wheel travel, the air unit in the left fork leg can also be adjusted easily with the use of an air pump for rider preference, weight or track conditions. The rear wheel is further kept in check by a fully adjustable WP monoshock, allowing for 185 mm of suspension travel.
Wheels and brakes
Inline with the entire Husqvarna Motorcycles motocross range, the EE 3 uses lightweight, black anodised, 10''aluminium rims that provide the highest levels of strength and reliability. The wheels are fitted with MAXXIS MX-ST tyres as they ensure straight-line stability and excellent traction on a variety of different surfaces. Additionally, hydraulic brakes with waved discs provide controllable stopping power.
Handlebar
Ensuring stability and control at the helm, tapered NEKEN handlebars are mounted as standard. With a tapered diameter of 28 mm to 22 mm in the bends to cylindrical ends of 18 mm in the grip area, the narrower diameter benefits younger riders with better grip and less fatigue. The throttle assembly for the electronic drive features a vulcanized ODI grip mounted on the right-hand side, along with a bar pad on the handlebar brace to protect the rider from any rough contact.
Bodywork
The bodywork on the EE 3 is designed to be slim and unrestrictive with modern ergonomics. This enhances control, particularly when accelerating and braking, and allows riders to perform at their best for extended periods of time.
Graphics
Setting itself apart from the 2-stroke models in the minicycle range, the EE 3 is complete with a striking blue and white appearance to signify its electric drive. The distinctive look is created using in-mold technology where the graphics are applied beneath the surface of the bodywork for a durable, premium finish.
