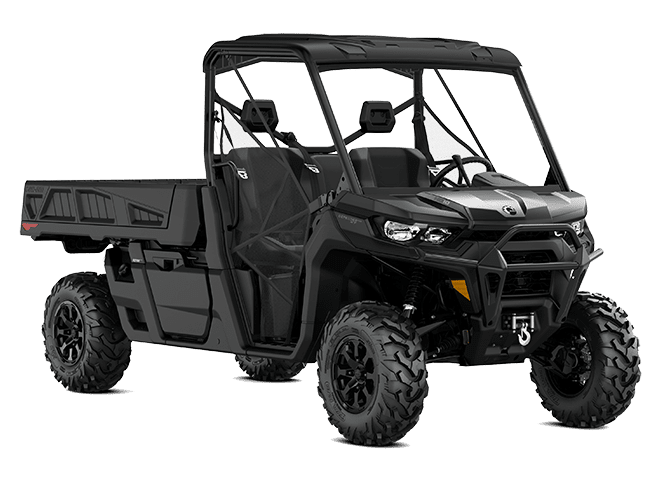

2024 Can-Am Defender Pro XT HD10

Timeless Black

MSRP: $23,699

Request Info

View Inventory

Back to Showroom

Specs and Features

ENGINE

Type

82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled

Fuel Delivery System

Intelligent Throttle Control (iTC™) with Electronic Fuel Injection (EFI)

Transmission

PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection, Extra-L / H / N / R / P

Drive Train

Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential

Driving Assistance

Electronic Hill Descent Control, ECO™ / ECO™ Off / Work modes

Power Steering

Dynamic Power Steering (DPS)

SUSPENSION

Front Suspension

Arched double A-arm / 11 in. (27.9 cm) travel

Front Shocks

Twin tube gas charged shocks

Rear Suspension

Arched TTA with external sway bar / 11 in. (27.9 cm) travel

Rear Shocks

Twin tube gas charged shocks

TIRES/WHEELS

Front Tires

XPS Trail King 27 x 9 / 11 x 14 in.

Rear Tires

XPS Trail King 27 x 9 / 11 x 14 in.

Wheels

14 in. cast-aluminum

BRAKES

Front

Dual 220 mm disc brakes with hydraulic twin-piston calipers

Rear

Dual 220 mm disc brakes with hydraulic twin-piston calipers

Technology

Brake holding mechanism

DIMENSIONS / CAPACITIES

L x W x H

159.7 x 64 x 80 (405.7 x 162.5 x 203.3 cm)

Wheel Base

115.5 in. (294 cm)

Ground Clearance

13 in. (33 cm)

Chassis Cage

Profiled cage. ROPS approved

Estimated Dry Weight*

1,942 lb (881 kg)

Cargo Box Dimensions

72 x 54.5 x 10 in. (180,3 x 138.4 x 25.4 cm)

Cargo Box Capacity

1,000 lb (454 kg) / California only: 600 lb (272.2 kg)

Tailgate Load Capacity

250 lb (113.4 kg)

Storage Capacity

Total: 100.5 gal (380.4 L)

Towing Capacity

2,500 lb (1134 kg)

Payload Capacity

1,570 lb ( 712 kg)

Fuel Capacity

10.6 gal (40 L)

FEATURES

Gauge

4.5 in. (11.4 cm) wide digital display

Battery

12-V (30 amp/h)

Magneto

650-W

Instrumentation

DC outlet (10-A), USB Port (10-A) x 2

Lighting

Front lighting output 140 W, LED tail lights

Winch

4,500-lb (2,041 kg) winch with roller fairlead

Seat

VERSA-PRO bolster bench seats with passenger seats flipping up, adjustable driver seat, underside hooks, reinforced XT seat skin

Steering Wheel

Adjustable tilt steering

Protection

XT front bumper, HMWPE full skid plate, Full hard roof

Hitch Type

2-in hitch receiver

WARRANTY

Factory

1-year BRP Limited warranty

Extended Service Terms

B.E.S.T. term available up to 30 months

DEFENDER PRO XT

EXTRA PAYLOAD ON A RIG THAT NEVER QUITS. Our best workhorse, and then some: 4,500 lb winch, rugged bumper and VERSA-PRO seats ensure every job will be done with strength to spare.

Class-leading torque, quieter Rotax engines

HD7, HD9 & HD10
The HD7 Engine (52 hp / 42 lb-ft torque) is the king of the mid-cc class! The break-in period, early maintenance and frequent valve adjustments are all things of the past. The powerpack design delivers an improved riding experience, with less noise & vibration.

BENCH SEAT WITH BOLSTERS

We’re talking smooth
Comfort isn’t just about the driver's seat. It’s advanced comfort for all day group riding. Intuitive cockpit with optimized visibility and additional lateral support with reinforced seat skin make for effortless hopping in and out. Underside hooks, Flip-up seat and adjustable driver's seat? You got those too. Comfort is king.

HYDRAULIC POWER TILT BED

Unload at the push of a button
Class-leading cargo box of 4.5 x 6 ft long - with 1,000 lb (454 kg) cargo box capacity, an easy flat-bed conversion and a hydraulic power tilt bed - there’s no limit. This multi-function cargo box can be customize any way you want.

AUDIO ROOF

More than just a roof over your head
Here's the new waterproof sound system available in option. Six 7.7’’ speakers with Bluetooth compatibility, multi-colored LEDs, an RMC amp and a genuine Rockford Fosgate audio receiver to crank up your playlists when you’re out there in the fields herding or baling to the beat of your own drum. Sounds good? You bet!

HVAC

No sweat: Available climate control
Features an automatic & a variable compressor mode that improves efficiency. Dial in heating, ventilation or air conditioning to keep the cabin temperature exactly how you like and lock in that temperature with the painted full doors.

EQUIPPED FOR ANYTHING

Integrated pass-through storage
Exclusive full-width under bed storage for cargo, gear, tools, and more. That's in addition to removable side panels, a dump mechanism, and 100% more loading space than the Defender. Enjoy gimmick-free practicality that's ready to haul with strength and space to spare.

UP TO A 3,000 LBS TOWING CAPACITY

Class-leading towing capacity
With engines, chassis, driving assistance, work mode and suspension all matched to work harder than any other side-by-side, the Defender can tow up to 2,500 lbs (1134 kg), while Defender 6x6 boasts an industry-leading 3,000 lbs (1360 kg) towing capacity.

TORQUE ON DEMAND

PRO-TORQ CVT transmission and on-the-fly 4WD
Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential puts the power down on any terrain. The PRO-TORQ CVT on HD9 and HD10 models provides improved cooling and electronic belt protection for more durability.
